Περιγραφή

Τύπος	Μέγεθος Σχοινιού	A	C	D	F	L	Βάρος
CF2	12mm	180mm	650mm	80mm	170mm	356mm	69kg
CF3	16mm	230mm	800mm	100mm	210mm	446mm	130kg
CF5	20mm	250mm	900mm	120mm	250mm	506mm	220kg
CF8	24mm	280mm	1000mm	140mm	288mm	576mm	320kg
CF12	32mm	300mm	1200mm	180mm	366mm	676mm	580kg
CF20	40mm	320mm	1350mm	245mm	500mm	830mm	1100kg
CF32	48mm	400mm	1700mm	300mm	610mm	1016mm	2210kg

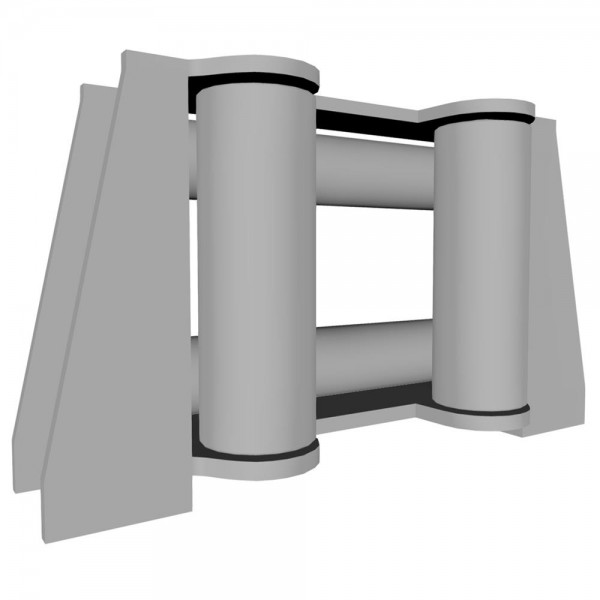

Οδηγός Κάβων Τύπου CF

Κωδικός Προϊόντος: 4009268
Διαθεσιμότητα: Διαθέσιμο

Διαθέσιμες Επιλογές

Ράουλα Kάβων CF Μεγέθη

Ποσότητα
